centrifugadora refrigerada del banco de sangre

CFH10R High Speed Large Capacity 6x1000ml Blood Bank Refrigerated Centrifuge Machine with 10000r/min and 18300xg

Nombre De La Marca:	Cenlee
Número De Modelo:	El CFH10R
MOQ:	1

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Hunan, China

Velocidad máxima:

10000R/Min

Capacidad máxima:

6 000 ml

Max RCF:

18300xg

Precisión de la velocidad:

Se aplicarán las siguientes medidas:

Rango de temperatura:

-20 ℃ ~+40 ℃

Precisión de la temperatura:

± 1 ℃

Rango del temporizador:

0-999min

Voltaje:

El valor de las emisiones de gases de efecto invernadero es el valor de las emisiones de gases de ef

Fuerza:

5.5kw

Nivel de ruido:

≤65db (a)

Dimensiones:

820×710×1150mm

Peso bruto:

268kg

Tipo de motor:

Inversor sin escobillas de alto par

Niveles de control:

10 niveles de aceleración/aceleración

Capacidad de programa:

40 procedimientos

Resaltar:

6x1000ml Blood Bank Refrigerated Centrifuge

10000r/min Laboratory Centrifuge

18300xg Refrigerated Centrifuge Machine

Descripción de producto

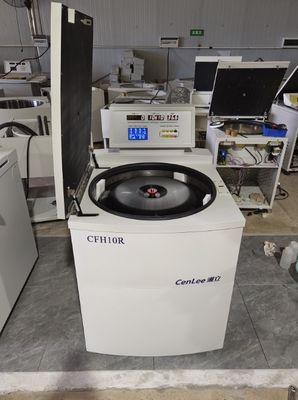

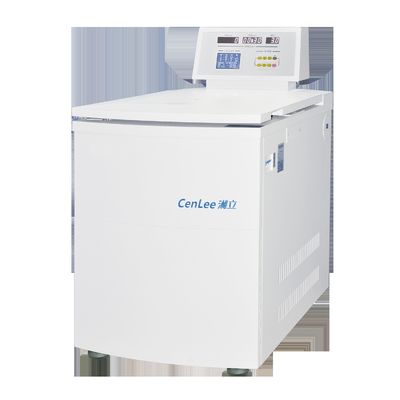

CFH10R Floor Type Laboratory High Speed Large Capacity 6x1000ml Blood Bank Refrigerated Centrifuge Machine

The CFH10R is a high-speed, large-capacity refrigerated centrifuge designed for laboratory and blood bank applications, featuring advanced microprocessor control and reliable performance.

Key Features

LCD and LED display with microprocessor control and touch panel interface
High-torque brushless inverter motor with European imported bearings for stable, maintenance-free operation
Imported drive system and automatic control system for reliable performance
Comprehensive safety features including over-temperature, over-speed protection, and imbalance detection
Programmable with 40 preset procedures and real-time parameter adjustment
10-level speed control for precise acceleration and deceleration
Pre-cooling centrifugal cavity design for fast cooling
Proprietary SCT speed control technology for rapid acceleration and high efficiency
Unique SBT control technology and rotor design to minimize resuspension

Technical Specifications

Model	CFH10R	Temperature Accuracy	±1℃
Maximum Speed	10000r/min	Timer Range	0-999min
Maximum RCF	18300xg	Voltage	AC220V50Hz30A
Maximum Capacity	6000ml	Power	5.5KW
Speed Accuracy	±20r/min	Noise Level	≤65dB(A)
Temperature Range	-20℃~+40℃	Dimensions	820×710×1150mm
Gross Weight	268kg

CFH10R Rotor Specifications

Rotor Type	No.	Capacity	Max Speed (r/min)	Max RCF (×g)
Main Machine	CFH10R		10000	18300
Angle Rotor	NO.1	6×300ml	10000	18300
Angle Rotor	NO.2	6×500ml	8000	11680

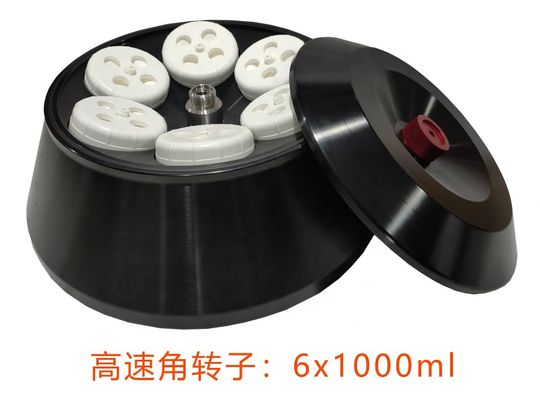

Angle Rotor	NO.3	6×1000ml	8000	12166
Swing Out Rotor	NO.4	6×1000ml	4200	5100
Swing Out Rotor	NO.5	4×1000ml	4200	4430
