centrifugadora refrigerada del banco de sangre

CFH10R Floor Standing High Speed Refrigerated Centrifuge with 18300xg RCF 40 Procedures and 10 Levels Speed Control

Nombre De La Marca:	Cenlee
Número De Modelo:	El CFH10R
MOQ:	1

Información detallada

Descripción de producto

Información detallada

Lugar de origen:

Hunan, China

Velocidad máxima:

10000R/Min

Max RCF:

18300xg

Capacidad máxima:

6 000 ml

Precisión de la velocidad:

Se aplicarán las siguientes medidas:

Rango de temperatura:

-20 ℃ ~+40 ℃

Precisión de la temperatura:

± 1 ℃

Rango del temporizador:

0-999min

Voltaje:

El valor de las emisiones de gases de efecto invernadero es el valor de las emisiones de gases de ef

Fuerza:

5.5kw

Nivel de ruido:

≤65db (a)

Dimensiones:

820×710×1150mm

Peso bruto:

268kg

Capacidad del rotor de ángulo:

6×300ml, 6×500ml, 6×1000ml

Capacidad del rotor oscilante:

6×1000ml, 4×1000ml

Niveles de velocidad:

10 niveles

Resaltar:

18300xg Refrigerated Centrifuge

40 Procedures High Speed Centrifuge

10 Levels Speed Control Laboratory Centrifuge

Descripción de producto

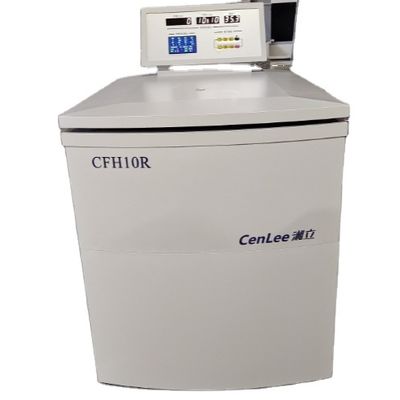

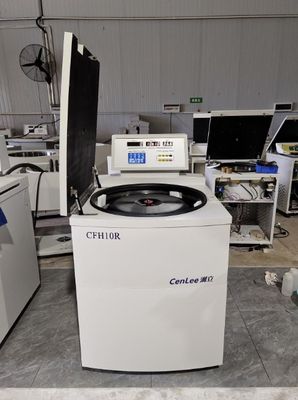

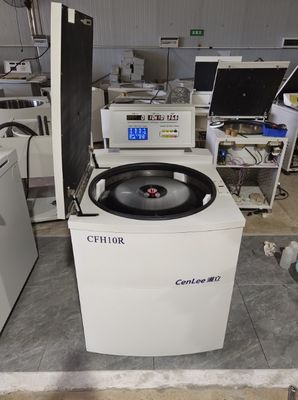

CFH10R Floor Standing High Speed Refrigerated Centrifuge Machine

10000rpm Large Capacity 6x1000ml

The CFH10R is a high-speed, large capacity refrigerated centrifuge designed for demanding laboratory applications requiring precision and reliability.

Key Features

LCD and LED display with microprocessor control and touch panel interface
High torque brushless inverter motor with European imported bearings for stable, maintenance-free operation
Advanced imported drive system and automatic control system for reliable performance
Comprehensive safety features including over-temperature, over-speed protection, and imbalance detection
Programmable operation with 40 preset procedures and real-time parameter adjustment
10-level speed control for precise acceleration and deceleration
Pre-cooling centrifugal cavity design for rapid temperature reduction
Proprietary SCT speed control technology for fast operation and high efficiency
Unique SBT control technology and rotor design to minimize resuspension

Technical Specifications

Model	CFH10R	Temperature Accuracy	±1℃
Maximum Speed	10000r/min	Timer Range	0-999min
Maximum RCF	18300xg	Voltage	AC220V 50Hz 30A
Maximum Capacity	6000ml	Power	5.5KW
Speed Accuracy	±20r/min	Noise Level	≤65dB(A)
Temperature Range	-20℃~+40℃	Dimensions	820×710×1150mm
Gross Weight	268kg

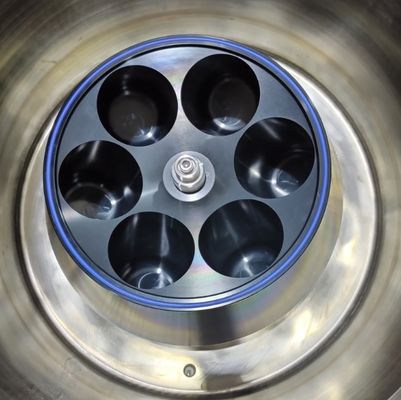

CFH10R Rotor Configurations

Rotor Type	No.	Capacity	Max Speed (r/min)	Max RCF (×g)
Main machine	CFH10R		10000	18300
Angle rotor	NO.1	6×300ml	10000	18300
Angle rotor	NO.2	6×500ml	8000	11680

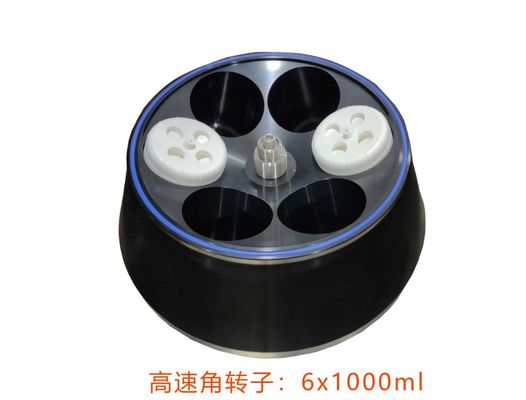

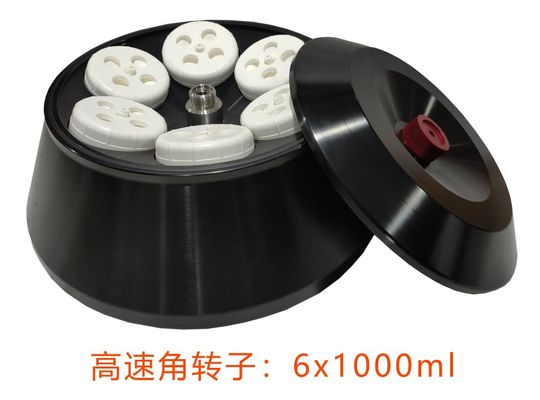

Angle rotor	NO.3	6×1000ml	8000	12166
Swing out rotor	NO.4	6×1000ml	4200	5100
Swing out rotor	NO.5	4×1000ml	4200	4430
